D-Link N300 Smart Router R04 (R04/BNA)

• Wi-Fi 4 (802.11n) Technology with 300 Mbps speed
• 1x 10/100 Fast Ethernet WAN Port
• 4x 10/100 Fast Ethernet LAN Ports
• Triple High-Gain Antenna Design for Extended Coverage
• Supports WPA,WPA2, and the latest WPA3 Wireless Security
• EAGLE PRO AI features including:
  • AI Wi-Fi Optimizer
  • AI Parental Controls
  • AI Assistant
  • Ookla Speed Test
  • QoS Technology
  • Reliable and Affordable Wi-Fi



    The R04 has the smarts to handle multiple wireless devices and enable smooth streaming and sharing across your entire home network. Proven cost-effective Wi-Fi 4 (802.11n) technology with 300 Mbps speed provides you the power you need for essential tasks on the internet — from 4K streaming to VoIP calls.





    Supports WPA3 – The Latest Wi-Fi Security



    The R04 supports the latest WPA3 Wi-Fi Security Protocol, which can help prevent brute-force password hacks, allows for more natural passwords, and secures past transmissions from being read, even if your password is exposed.





    Always the Best Connection Possible



    AI Wi-Fi Optimizer continuously scans the environment to keep you connected to the cleanest channel available.

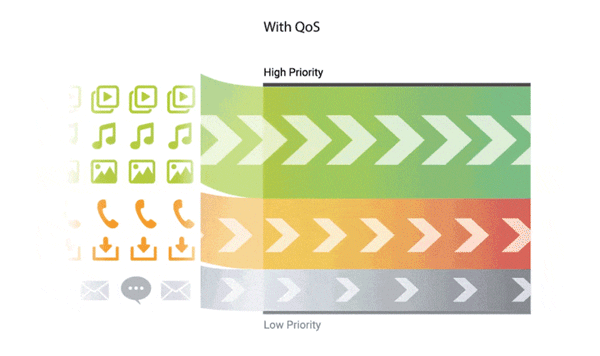

    Quality of Service



    The Quality of Service (QoS) is evaluated data size and data size is used to filter the High and Lower priority data transmission. So, the users can set the manual priority  based on their essentials in EAGLE PRO AI App.

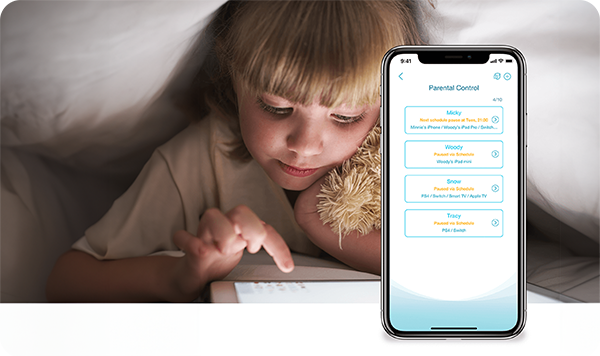

    Keep Playtime Safe and Healthy



    AI Parental Control lets you designate online hours for little ones and restrict website access to keep their learning experience a safe and healthy one.







    Health Mode



    • Schedule Wi-Fi transmission hours to reduce possible effects of electromagnetic radiation
    • Schedule Wi-Fi access hours to maintain a balanced family lifestyle
    • Turn off Wi-Fi entirely to conserve energy





    For Everything Wi-Fi, there’s D-Link EAGLE PRO AI



    The EAGLE PRO AI App managing your W-Fi has never been easier,
    AI Assistant to continuously monitor data usage and provide actionable recommendations and weekly report.









    Works with Google Assistant and Alexa



    Easily integrates with Amazon Echo’s Alexa
    or the Google Assistant for convenient hands-free voice control.

    *Please check availability in your region







    Related Products



    EAGLE PRO AI AX1500 Smart Router

    R15

    Find out more

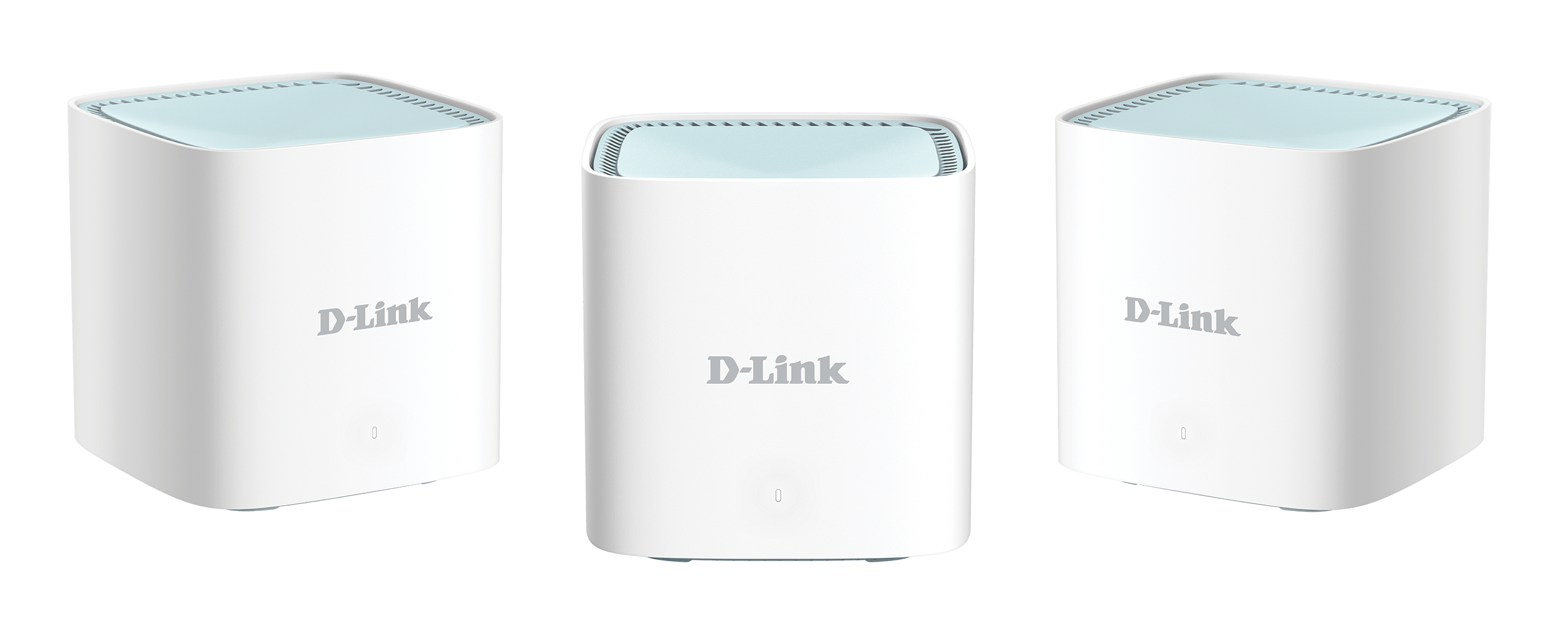

    EAGLE PRO AI AX1500 Mesh System

    M15-2, M15-3

    Find out more



    AX1500 Mesh Range Extender

    E15

    Find out more

    Specs

    Download the datasheet.

    Antenna	3 x external dipole antennas (5 dBi)
    Certifications	CE FCC
    Device Management	EAGLE PRO AI app (iOS and Android) Web UI
    Dimensions	158 x 131.35 x 43.73 mm (L*W*H)
    Firewall	1 x DMZ Anti-spoofing Checking DoS IP/MAC Address Filtering Stateful Packet Inspection
    Hardware version	A1
    Interfaces	1 x 10/100 Mbps Ethernet WAN port 1 x power connector 1 x Reset/WPS button 4 x 10/100 Mbps LAN ports
    Maximum Operating Voltage	12V
    Operating Humidity	10% to 90% non-condensing
    Operating Temperature	0 to 40 °C (32 to 104 °F)
    Power Input	12 V 1A
    QoS	D-Link QoS Technology
    Security Protocol	WPA/WPA2-Personal WPA2/WPA3-Personal (WPS not supported) WPA2-Personal only WPA3-Personal only (WPS Not supported)
    Storage Humidity	5% to 95% non-condensing
    Storage Temperature	-20 to 65 °C (-4 to 149 °F)
    Voice Assistant	Amazon Alexa Google Assistant
    WAN	DS-Lite Concurrent session: 32,000 L2TP PPPoE PPTP Supports 802.1p & 802.1q VLAN tagging and Priority bit
    Weight	168 g
    Wireless Standard	IEEE 802.11k/v IEEE 802.11n/g/b IEEE 802.3u/b
    Wi-Fi Data Rate	2.4 GHz Up to 300 Mbps
